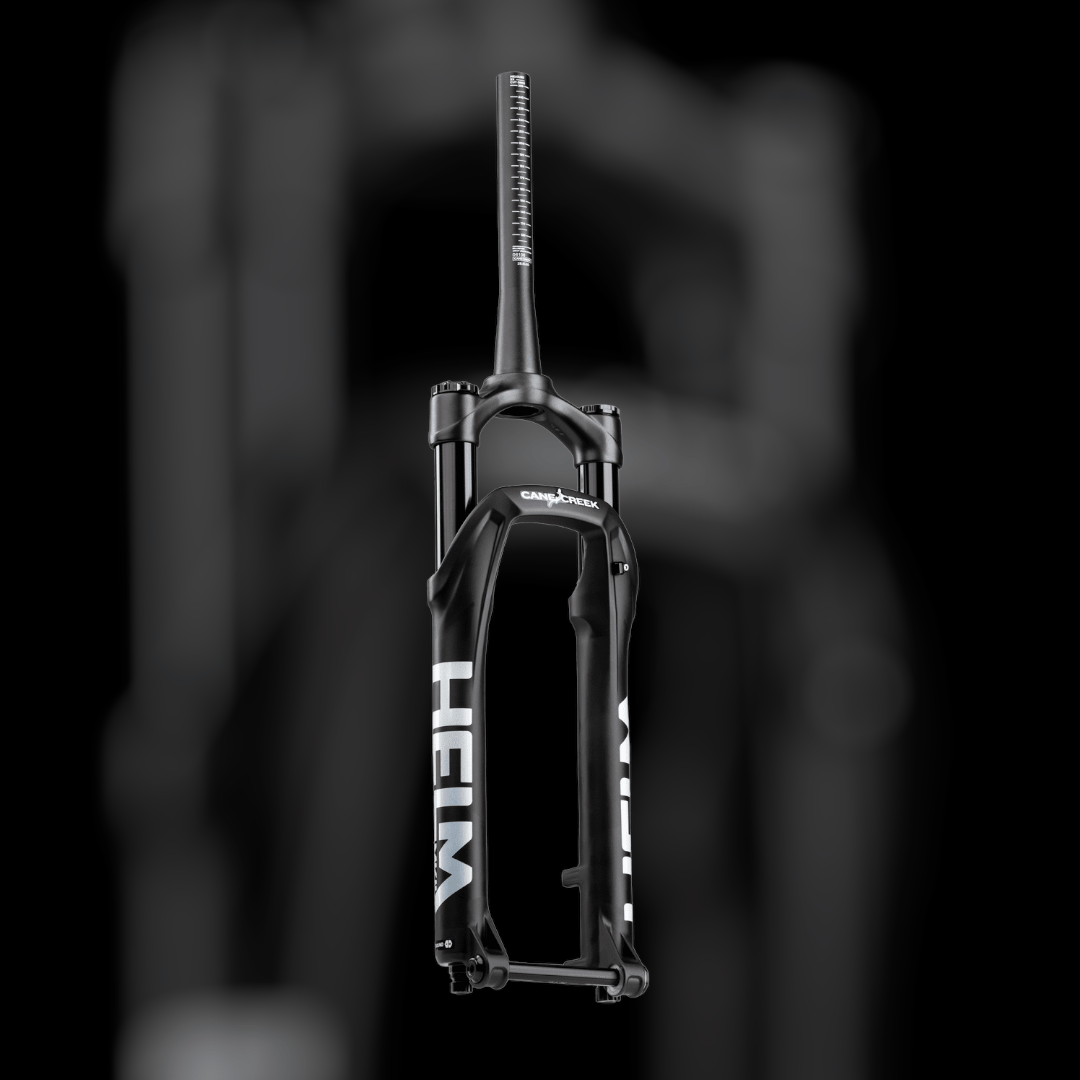

Cane Creek Helm DJ

The new Cane Creek HELM DJ combines the proven performance, reliability and strength of the HELM MKII’s chassis with a new short travel air spring optimized for Dirt Jumps, Dual Slalom and Street riding.

Preset at 90mm travel and a 483mm axle to crown to accommodate a 26″ wheel without changing the geometry of your dirt jump bicycle.

HELM DJ IS 15mm X 110mm BOOST SPACING. Additional adapter kits may be required for compatibility.

Helm DJ Setup Recommendations:

Air Pressure – Between 95 and 125 psi based on rider weight and sag / ride height preference.

Rebound – Between 5 and 10 clicks from closed due to the increased air pressure.

Technical Specifications
Weight 2140g
Stanchion 35mm
Travel Preset at 90mm.
Wheel Size 27.5" chassis designed to be used with a 26" wheel.
Max Tire Size 65mm wide by 714mm tall
Hub Spacing 15mm X 110mm Boost Spacing
Axle To Crown 483mm
Offset 44mm
Axle Clamp D-Loc Quick Release
Color Matte Black with Metallic Silver Decals (Manufacturer reserves the right to change this at any time)
